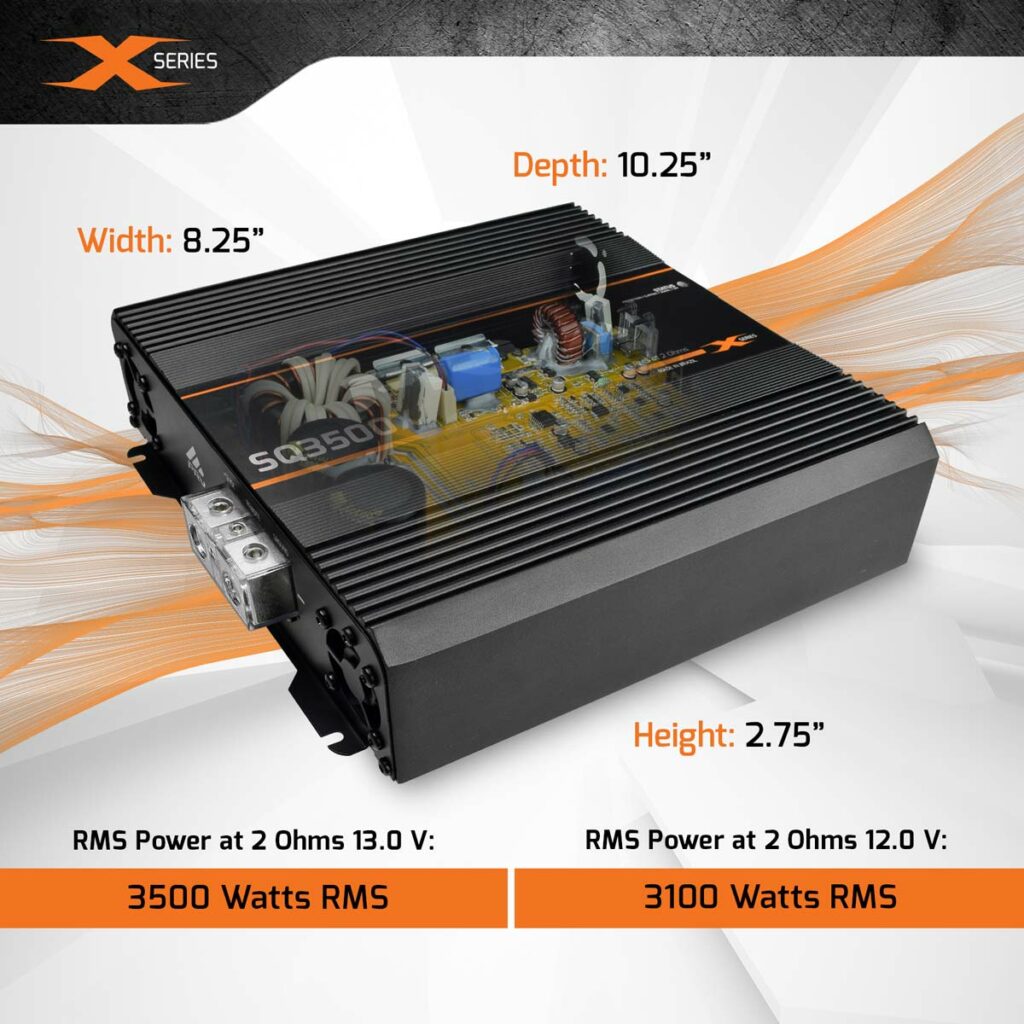

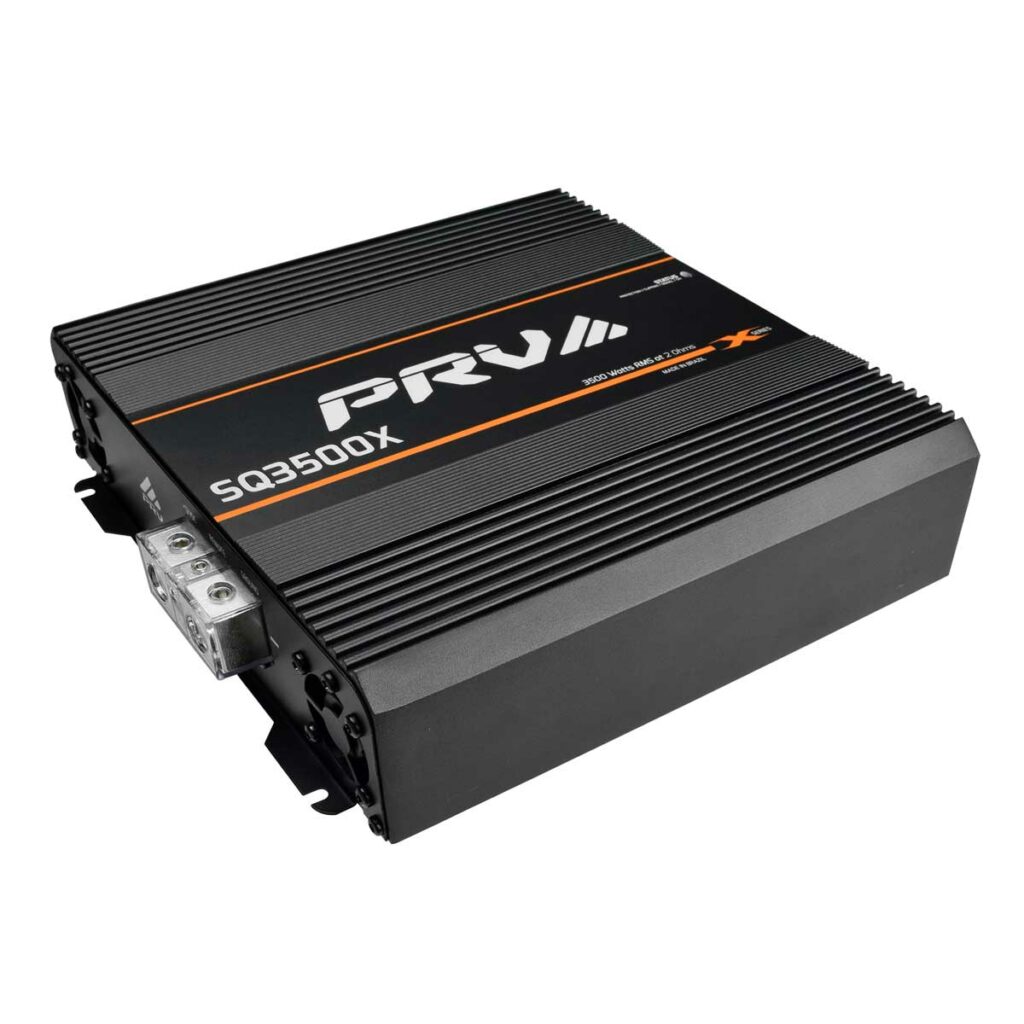

Designed to produce a serious 3500 watts at 2 ohms at 13.0 Volts with a dynamic power rating of over 4,000 Watts, the SQ3500X amplifier is a great choice for high power loudspeaker systems.
Our proprietary SQochre-Xwire power supply delivers a massive output with real-world input voltage levels at an excellent sound quality at a high-efficiency rate of 83%.
| Channels | 1 Channel |
| Rated RMS Power at 13.0 V at 2 Ohms | 3500 Watts |
| Rated RMS Power at 13.0 V at 4 Ohms | 2300 Watts |
| Rated RMS Power at 12.0 V at 2 Ohms | 3100 Watts |
| Rated RMS Power at 12.0 V at 4 Ohms | 2000 Watts |
Technology Highlights
- Single 1/0 Gauge power and ground terminals, which translates for maximum current flow and therefore higher power output
- Dual 10 Gauge positive and negative terminals, more connections for easy installation on multi-speaker systems.
- Heavy-duty Components – Overbuilt to perform
- HD Sound Quality – Frequency response up to 25,000Hz
High Grade Competition MOSFETs
PRV X Series amplifiers use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance, and improved heat dissipation over traditional MOSFET on most Brazilian Amplifiers
SQochre-Xwire power supply
Produces exceptional power at low 12.0 volts, designed to work off a real-world voltage with unsurpassed total efficiency from very compact designs with a unique enhanced high switching frequency
High Capacitance Reserve
Large capacitor bank designed to store more energy and provide a high dynamic sound, capable of astonishing power output over 4000 Watts
Class XD
Full Range Class xD amplifier has 75-85% efficiency ratings vs. 40-60% efficiency ratings of class A/B amplifiers. Which translates to less current draw and more power
True Heat sink
Real Aluminum cast-alloy heat sink enables the SQ3500X to have one of the smallest footprints in its power class while maintaining maximum heat dissipation under the most demanding conditions. Weighing 8.50 Lbs!
Balanced Differential and High Sensitivity Inputs
Differential inputs eliminate noise picked up by signal cables. Our System uses better quality components than a basic single-ended design
